Fuel Level Sensor, reed type, l=741mm, d=80mm
312,50 € excl. VAT
Fuel Level Sensor, reed type, l=916mm, d=80mm
346,10 € excl. VAT
Fuel Level Sensor, reed type, l=831mm, d=80mm
312,50 € excl. VAT

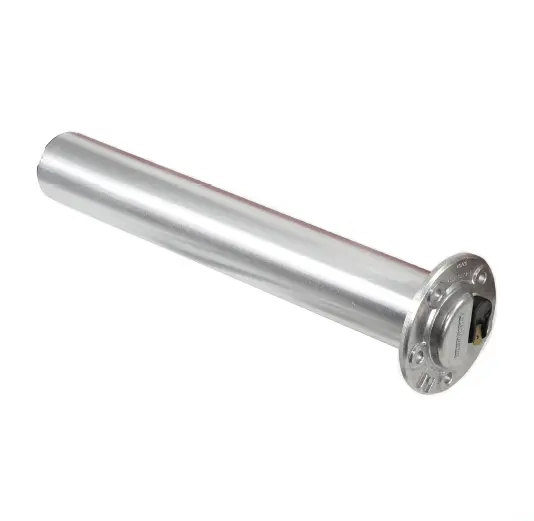

Fuel Level Sensor, reed type, l=831mm, d=80mm, 608 020 1021
Special wishes?
We deliver customized solutions!
In addition to the standard sensor listed, we can also offer you customized, specific solutions. Simply contact us with your requirements via the contact form:
Description
This fuel tube sensors are suitable for installation in vehicle tanks to a depth of approximately 1300 mm. Due to possible surge forces, this stable fuel tube sensor should be used where lengths exceed 600 mm. The version is grounded.
Compatible with MOTOMETER fuel displays
609 004 xxxx
609 005 xxxx
Additional information
| Weight | 1,4 kg |
|---|
Technical Details
Bolt circle diameter: 80mm Length: 831,0 mm Resistance FULL: 0-2 Resistance EMPTY: 82,8 +/- 2,5 Connection: A 6,3 x 0,8 Remark: Reed Art. No.: 608 020 1021
Drawing
