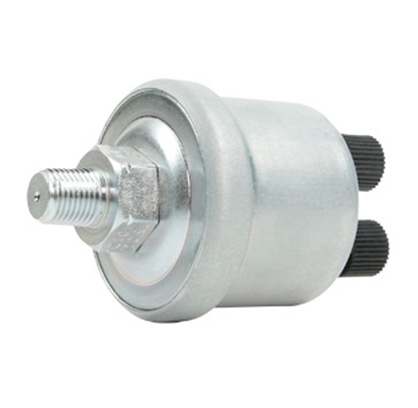

Pressure sensor 1-pin grounded, 0-5 bar, M10x1k


Plus 19% VAT
Delivery Time: available immediately

Pressure sensor 1-pin grounded, 0-5 bar, M10x1k 675 002 1001

Totals 58,90

Pressure sensors are used in vehicles and machines to record the pressure of oil or air and to forward the measurement result to a pressure display.

MOTOMETER pressure sensors are available in pressure ranges of between 0 bar to 25 bar. The pressure sensor is screwed in; the prevailing pressure changes a mechanically influenced potentiometer integrated in the housing.

Operation is possible with 12 Volt or 24 on-board supply system.The sensors are available in 1-pin grounded, off-earthed as well as grounded with warning contact.

Compatible with MOTOMETER pressure displays
644 001 xxxx
644 060 xxxx

Pressure range: 0 – 5 bar
Thread: M10 x 1k
Connection: Knurled nut M4
Part No.: 675 002 1001

642 016 1016

Special wishes? We deliver customized solutions!

In addition to the standard temperature sensors listed, we can also offer you customized, specific solutions. Simply contact us with your requirements via the contact form:
