USB-C Charger
USB-C Charger
Typ-a-output: 5V~12V, (Max: 36W)
Typ-c-output: 5V~20V, (Max: 60W)
(Typ-a+Typ-c) output: (5V 2.1A+5V 2.1A)
We deliver customized solutions!

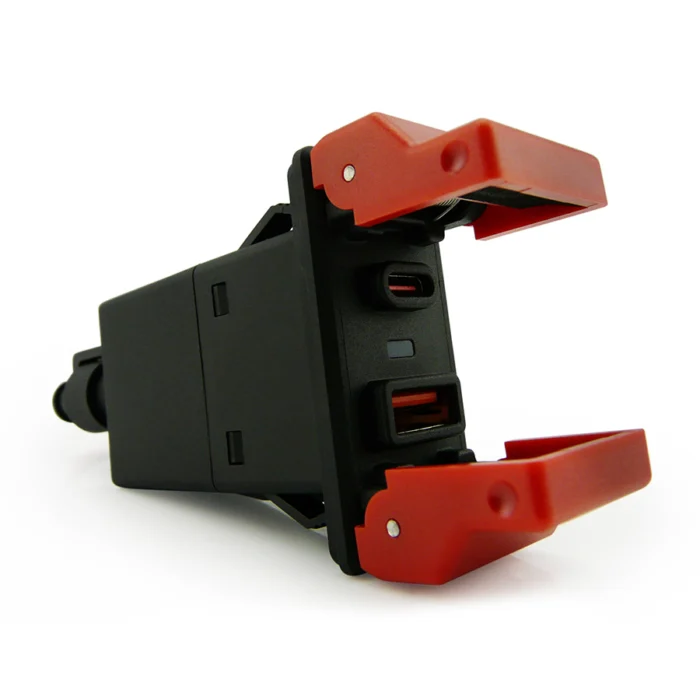

Discover the future of charging with the USB-C charger from MOTOMETER. The charger is equipped with two USB ports: a USB-A 2.0 port and a USB-C port with Power Delivery. This allows our innovative charger to charge two devices at the same time. Its LED status indicator ensures effortless use, even in the dark.
Thanks to its standardized design, the USB-C Charger can be easily integrated into a rocker switch panel. The robust sealing caps and the waterproof plug on the back ensure reliable protection against water and dirt, while the charger works without any problems with an operating voltage of 12 and 24 volts.
| Weight | 0,023 kg |
|---|
Electrical
Number of USB Ports: 2 USB Type-a×1, Type-c×1
Nominal Voltage: 12V/24V DC
Operating Voltage: 12V/30V DC(max)
Peak Voltage: 32V DC(max)(3~4seconds )
Input: 12V
Type-a output: 5V~12V, (Max: 36W)
Type-c output: 5V~12V, (Max: 36W)
(Type-a+Type-c) output: (5V 2.1A+5V 2.1A)
Input: 24V
Type-a output: 5V~12V, (Max: 36W)
Type-c output: 5V~20V, (Max: 60W)
(Type-a+Type-c) output: (5V 2.1A+5V 2.1A )
Operating Frequency: 100~150Khz
Current Draw: Quiescent curren: 20mA
Life: 5000 operating cycles
Sealing: IP65
Terminals: Connector (TE 282104-1)
Operating Temperature: -20°C ~ +60°C
Panel Opening: 21.2×37.2 mm
Over voltage protection: Yes
Over current protection: Yes
Over temperature protection: Yes
Short circuit protection: Yes
Reverse polarity protection: Yes
