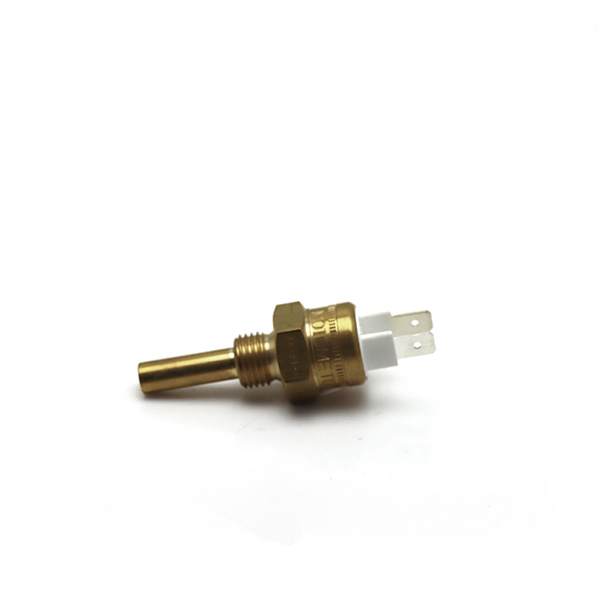

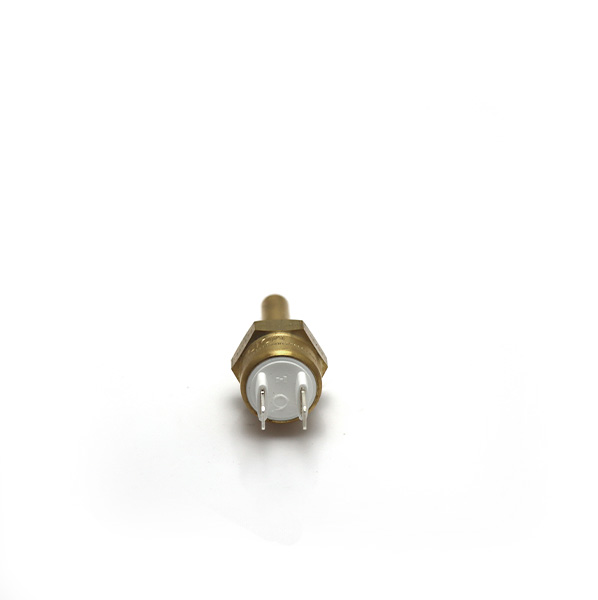

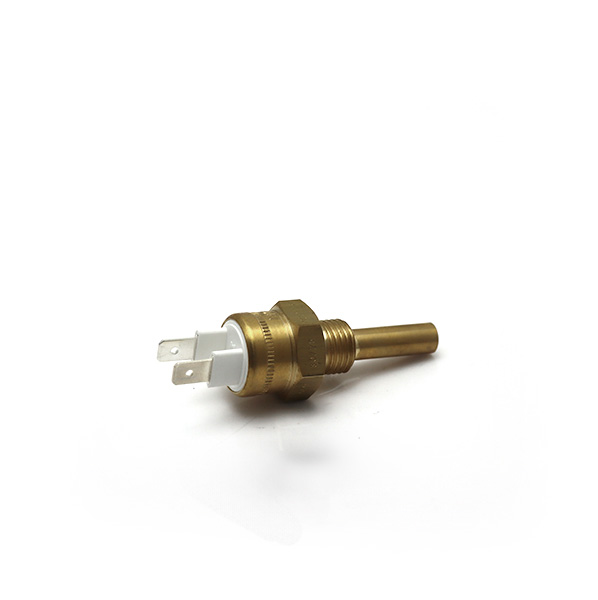

Temperature switch 55 °C, +/- 3 °C, M14 x 1,5, A 6,3 x 0,8, 100 W, massefrei
49,50 €
Temperature switch 55 °C, +/- 3 °C, M14 x 1,5, A 6,3 x 0,8, 100 W, massefrei 610 006 1006
MOTOMETER temperature sensors have a NTC resistor, that records the temperature of oil, water or air and forwards the measurement result to a temperature display.
Brass casings are used, along with a special gel in the sensor housing, for the fast transfer of the detected temperature with little loss.
Operation is possible with 12 Volt or 24 Volt on-board supply system. The temperature range is between 40 °C and 120 °C or between 50°C and 150°C, depending on the type.
In addition to the listed standard temperature sensors, we can also offer you customized solutions.
| Weight | 0,5 kg |
|---|
Warning contact: 55 °C Thread: M14 x 1,5 Tolerance: +/- 3 °C Switching capacity: 100 W Connection: A 6,3 x 0,8 massefrei
We deliver customized solutions!
