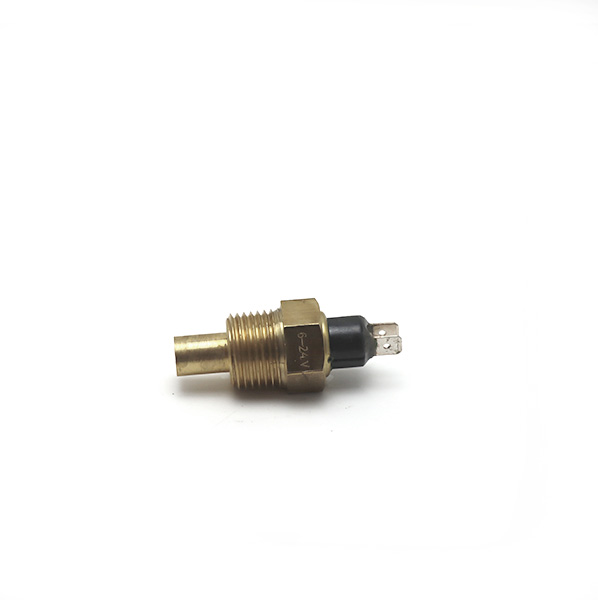

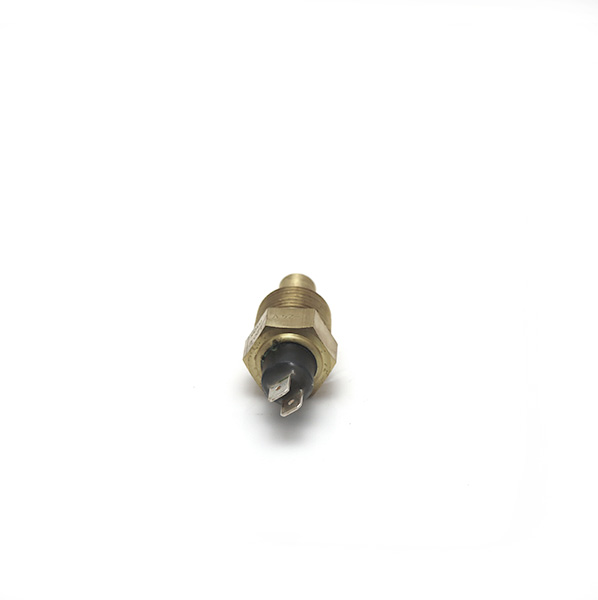

Temperature sensors (40 °C – 120 °C), 1/2”-14 NPTF, A 6,3 x 0,8, Install. depth 29 mm, unearthed
29,10 €
Temperature sensors (40 °C – 120 °C), 1/2”-14 NPTF, A 6,3 x 0,8, Install. depth 29 mm, unearthed, 642 011 1004
MOTOMETER temperature sensors have a NTC resistor, that records the temperature of oil, water or air and forwards the measurement result to a temperature display.
Brass casings are used, along with a special gel in the sensor housing, for the fast transfer of the detected temperature with little loss.
Operation is possible with 12 Volt or 24 Volt on-board supply system. The temperature range is between 40 °C and 120 °C or between 50°C and 150°C, depending on the type.
In addition to the listed standard temperature sensors, we can also offer you customized solutions.
| Weight | 0,5 kg |
|---|
Measuring range: 40 – 120°C Thread: 1/2”-14 NPTF Voltage: 6 – 24 Volt Install. depth: 29 mm Connection: A 6,3 x 0,8 Unearthed
We deliver customized solutions!
