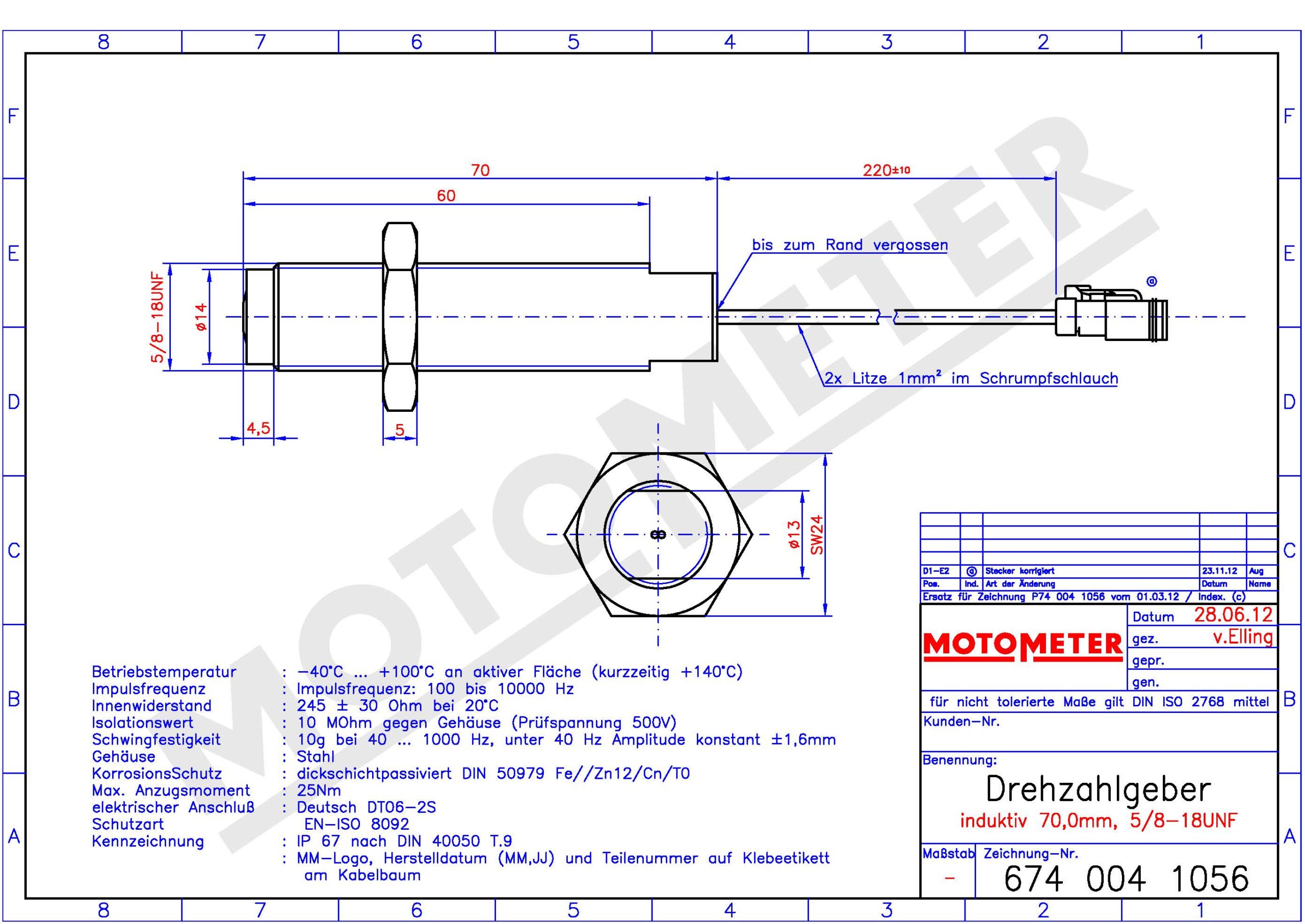

Speed Sensor CR6 free, inductive L=70,0 mm, 5/8-18UNF cable length= 220 mm

MOTOMETER inductive encoders offer a reliable solution for measuring the speed of vehicles and machines. They are used in vehicles and machines and precisely measure the revolutions per minute of rotating shafts, axles, wheels, etc. to determine the revolutions per minute. Induction is used to count the number of teeth on a gearwheel or the number of holes in a perforated plate. The resulting pulses are transmitted to a tachometer, which then determines and displays the speed, taking into account the pulses per revolution.

The MOTOMETER inductive encoders are available with different threads and in different lengths. All encoders are encapsulated in plastic and have standard plug connectors or plugs. The induced voltage depends on the number of pulses.
