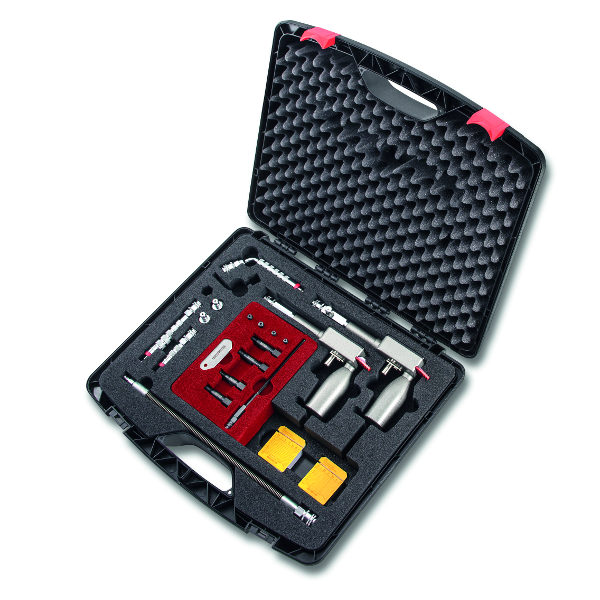

Recording compression tester Plus set for petrol and diesel engines 3,5-17,5 bar / 10-60 bar with accessories
885,00 €
Recording compression tester Plus set for petrol and diesel engines 3,5-17,5 bar / 10-60 bar with accessories
The Plus Set includes the compression pressure recorder and the universal glow plug adapter set.
Checking and documenting engine pressure with the MOTOMETER compression pressure recorder is easy and safe.
With the universal adapter set, you can measure compression pressure on a wide variety of engines via the glow plug hole in just a few steps.
Simply screw the appropriate screw-in adapter and sealing cone onto the adapter tube and you have the right adapter at hand.
- Replaces over 80% of glow plug adapters
- Time-saving
- Cost-effective
- Easy to use
| Weight | 3,56 kg |
|---|
- 1 x Recording Compression Tester diesel 10 – 60 bar
- 1 x Recording Compression Tester petrol 17,5 bar
- 1 x Pressure hose
- 100 x Recording charts 10 – 60 bar
- 100 x Recording charts 3,5 – 17,5 bar
- 1 x Extension angled 70°
- 1 x Extension 70mm
- 1 x Extension 105mm
- 1 x Rubber cone with socket 63°, Ø 17 mm
- 1 x Rubber cone with socket 30°, Ø 21 mm
- 1 x Adapter tube
- 4 x Screw-in adapter (M8x1, M9x1, M10x1 und M10x1,25)
- 4 x Sealing cones (Ø 8.2/60°, Ø 8.2/90°, Ø 6.8/90°, Ø 6.8/120°)
- 1 x Angle gauge
- 2 x Manuals
- 1 x Case
Special wishes?
We deliver customized solutions!
In addition to the standard sensor listed, we can also offer you customized, specific solutions. Simply contact us with your requirements via the contact form:
RELATED PRODUCTS

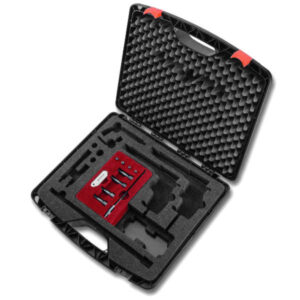

Recording Compression Tester for diesel engine 10 – 60 bar with accessories
