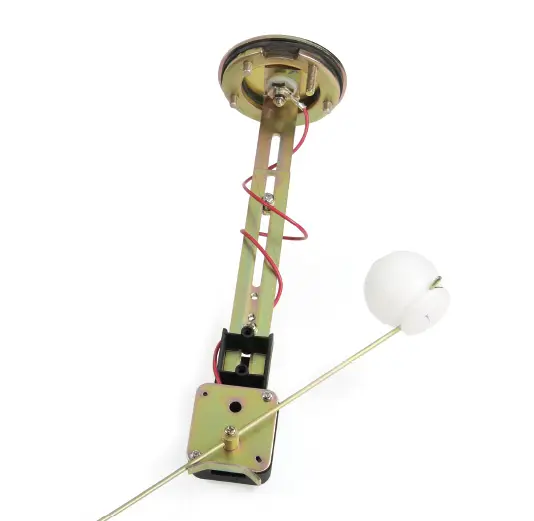

Lever-type level sensor, 54 mm Diameter hole circle, 150 – 600 mm

Name: Lever-type level sensor, 54 mm Diameter hole circle, 150 – 600 mm
SKU: 6080011066
Availability: InStock

74,60 €

Lever-type level sensor, 54 mm Diameter hole circle, 150 – 600 mm, 608 001 1066

SKU: 6080011066 Categories: Fuel level sensors, Lever-type level sensor

Lever-type level sensors are used in many vehicles and machines to record the current tank contents and to forward the evaluation result to the tank display. A float always moves on the surface of the liquid and, in so doing, changes the resistance value in the tank sensor. MOTOMETER lever-type level sensors are suitable for Diesel and gasoline fuels and are available in different versions. Operation is possible with an onboard 12 Volt or 24 Volt systems.
The resistance with “Tank Full” is 180 Ohm and with “Tank Empty” 3 Ohm. The version is grounded.
Compatible with MOTOMETER fuel displays:
609 060 xxxx

Weight	0,495 kg

Bolt circle diameter: 54 mm

Length: L=150-600 mm

Resistance FULL: 180

Resistance EMPTY: 3

Art. No.: 608 001 1066

Special wishes?

We deliver customized solutions!

In addition to the standard sensor listed, we can also offer you customized, specific solutions. Simply contact us with your requirements via the contact form:
