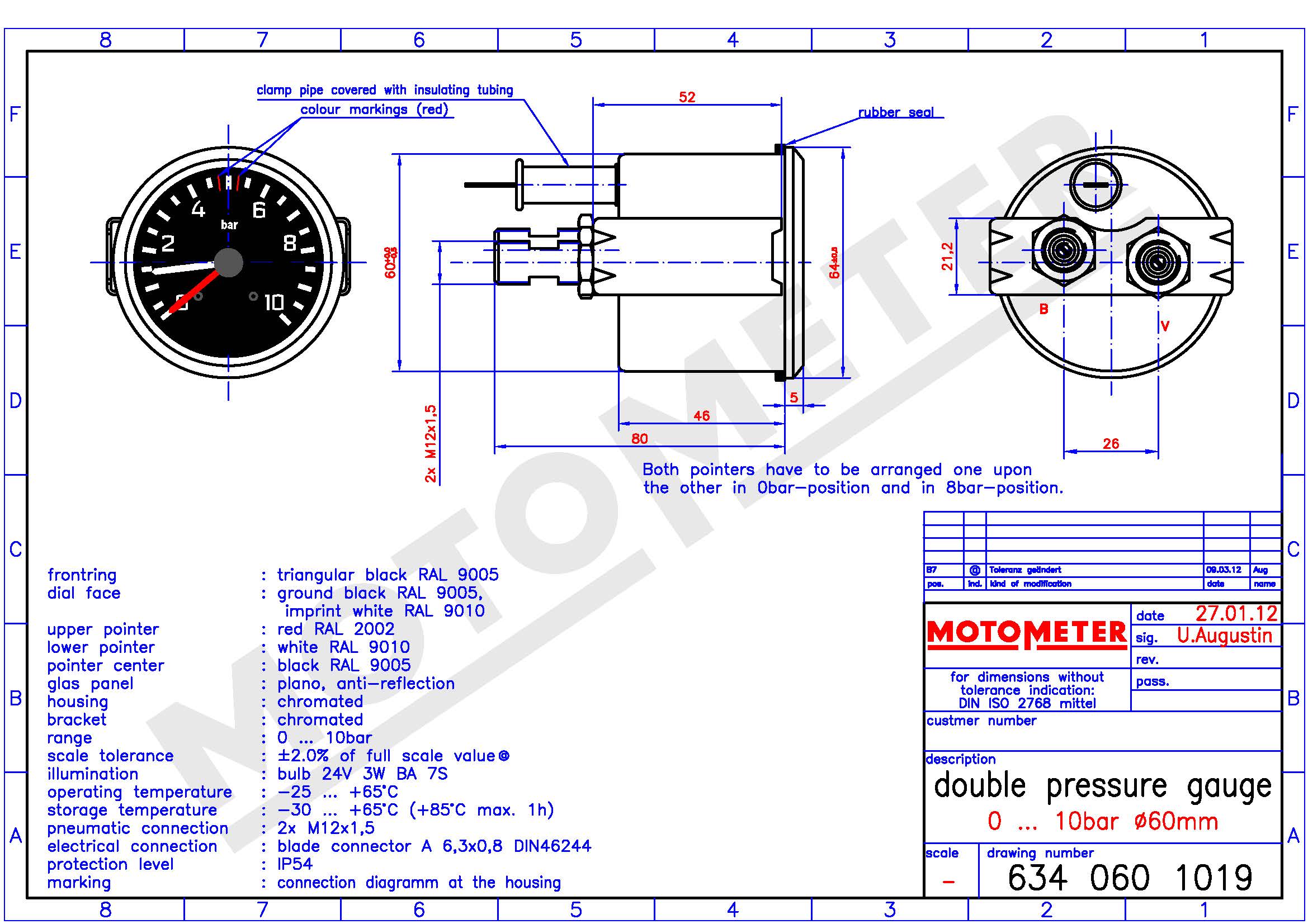

Double Pressure Gauge, mechanical 0-10bar, d=60mm, M12x1,5 for air pressure
208,90 €
Double Pressure Gauge, mechanical 0-10bar, d=60mm, M12x1,5 for air pressure, 634 060 1019
A dual pressure gauge is used to measure and display two different pressures simultaneously. Typically, such devices are found in systems where it is important to monitor both the pressure in a tank and the inlet or outlet pressure.
Advantages:
– Clear display of both pressures in one instrument
– No need for two separate pressure gauges
The front ring is a black triangular design. A distinction is made between single pressure gauges and double pressure gauges.
| Weight | 0,176 kg |
|---|
Measuring range: 0–10 bar
ø mm: 60 mm
Use: Air pressure
Pointer: red/white
Symbol: without
Connecting thread: M12 x 1,5
Part No.: 634 060 1019
Special wishes?
We deliver customized solutions!
In addition to the standard sensor listed, we can also offer you customized, specific solutions. Simply contact us with your requirements via the contact form:
