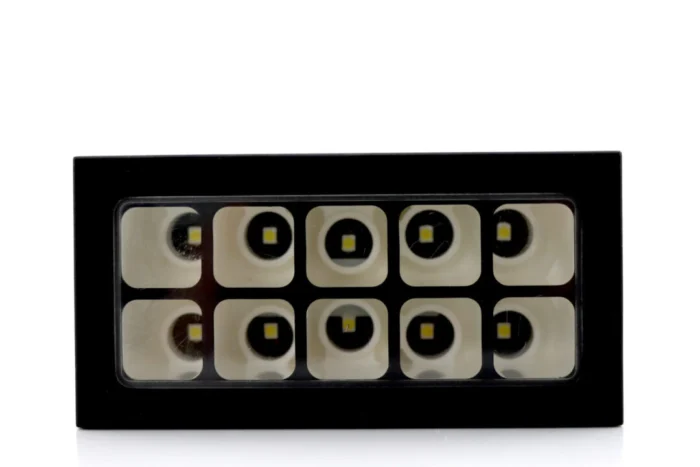

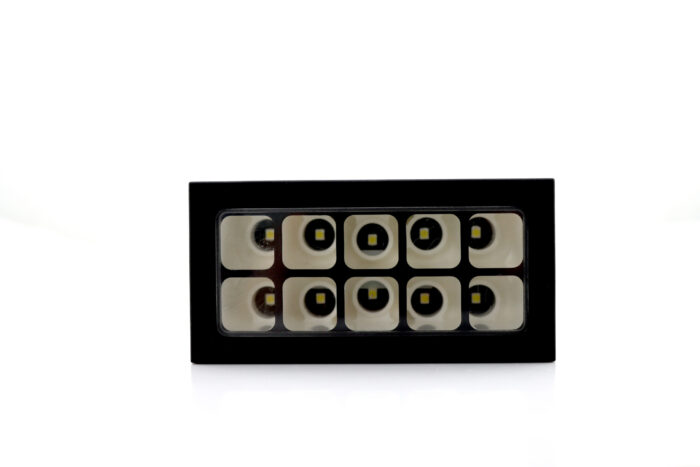

CAN Control Light Module, without colour plates
54,60 €
710 430 1000 CAN Control Light Module, without colour plates
Discover our CAN Control Light Module – the ideal solution for your vehicle’s safety and efficiency. Equipped with high-quality LEDs, our module offers up to 10 individually configurable control lights, activated as needed to signal vehicle defects or warn of critical operating conditions. The color and symbols of the control lights are fully customizable thanks to customer-specific symbol plates. Available in both 12 V and 24 V, our products ensure seamless integration into your vehicle systems.
| Weight | 0,214 kg |
|---|
CAN interface 1 independent CAN interfaces supports standard SAE J1939 Protocol standard 2.0B (11-bit, 29-bit identifier) Input signals 4 digital inputs Electrical specifications Operating voltage: 12 V or 24 V Operating temperature: -40 °C to +85 °C EMC compatibility: EN 13309; ISO 13766; ISO 16750 Mechanics Front frame: 100 mm x 50 mm Dashboard cut-out: 96 mm x 48 mm Housing cup depth: < 60 mm Fastening: Plastic knurled nut with metal bracket Protection class front side: IP64 Protection class rear: IP50 Glass pane: flat, anti-reflective Housing: black matt
We deliver customized solutions!
